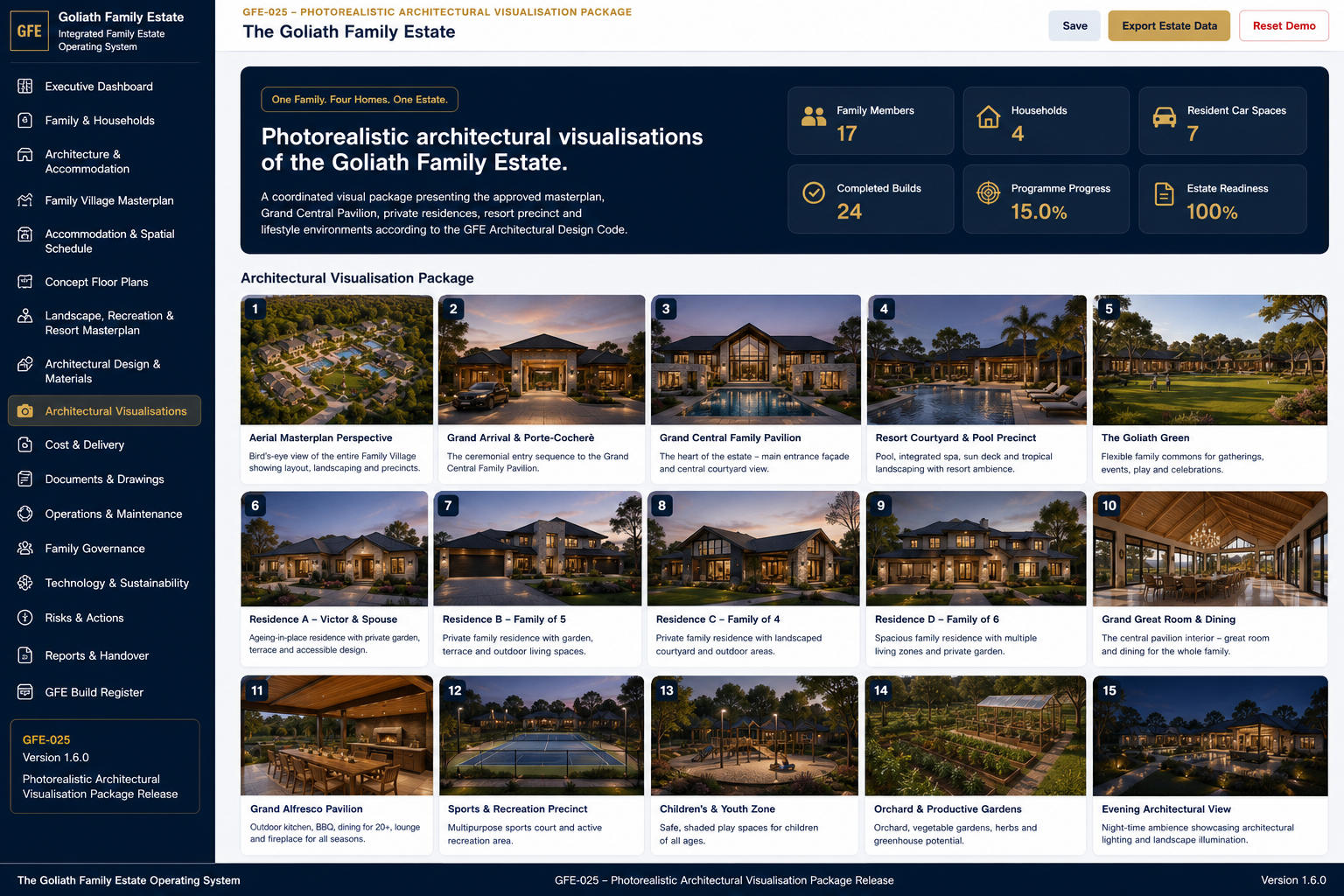

GFE-023 · Landscape, Recreation & Resort Masterplan

The Goliath Family Estate

One Estate. Four Households. Seventeen Family Members.

A complete operating system for planning, building, governing and maintaining the family estate.

GFEOS brings together the full GFE-001 to GFE-023 programme: architecture, accommodation, costs, documents, technology, sustainability, operations, family governance and long-term estate management.

Family Members17
Households4
Resident Car Spaces7
Completed Builds23
Private residences4
Communal areasIntegrated
Approved budget$0
Programme progress0%
Open actions0
Estate readiness100%
Estate control

Capability Status

Household profile

Members by Household

Integrated estate workflow

GFEOS Operating Cycle

01

Plan

Accommodation, architecture, landscape, systems and family needs.

02

Fund

Budget, cashflow, procurement, contracts and programme.

03

Build

Drawings, approvals, revisions, quality and construction delivery.

04

Operate

Assets, maintenance, providers, inspections and incidents.

05

Govern

Family council, shared costs, estate rules, responsibilities and decisions.

Family composition

Household Register

HouseholdFamily UnitAdultsChildrenTotalRepresentativePrivate ResidenceCar Spaces
Accommodation model

Private Areas

Residence A

Victor and wife. One dedicated car space. Age-friendly private suite.

Residence B

Eldest son, wife and three boys. Two dedicated car spaces.

Residence C

Daughter, partner and two girls. Two dedicated car spaces.

Residence D

Youngest son, wife, three daughters and one son. Two dedicated car spaces.

Shared family life

Communal Areas

Family Great Room

Large shared living, dining and celebration space.

Shared Kitchen

Communal meals, gatherings and family events.

Garden & Pool

Outdoor recreation, family events and children's play.

Family Council Room

Meetings, decisions, estate governance and shared planning.

Architectural programme

Completed Planning Modules

Core design principles

Estate Design Constitution

  1. One Family. Four Homes. One Estate: four genuinely independent residences unified by one architectural identity.
  2. The Grand Central Pavilion is the shared social and ceremonial heart for all 17 family members.
  3. Low glazed galleries, covered walkways, courtyards and landscape transitions connect the pavilions while preserving privacy.
  4. The estate is predominantly single-storey; Residence A is fully ageing-in-place capable with shortest practical travel distances.
  5. All seven resident car spaces must be secure and EV-ready.
  6. The design must support safety, sustainability, long-term maintenance and future expansion without compromising the original composition.
GFE-019 + GFE-020 · Approved architectural pivot

One Family. Four Homes. One Estate.

The Goliath Family Estate is now conceived as a predominantly single-storey luxury family village: four fully independent family residences arranged around a Grand Central Family Pavilion, private resort courtyard and extensive shared grounds.

17 family members4 independent homes7 resident car spacesPredominantly single-storey

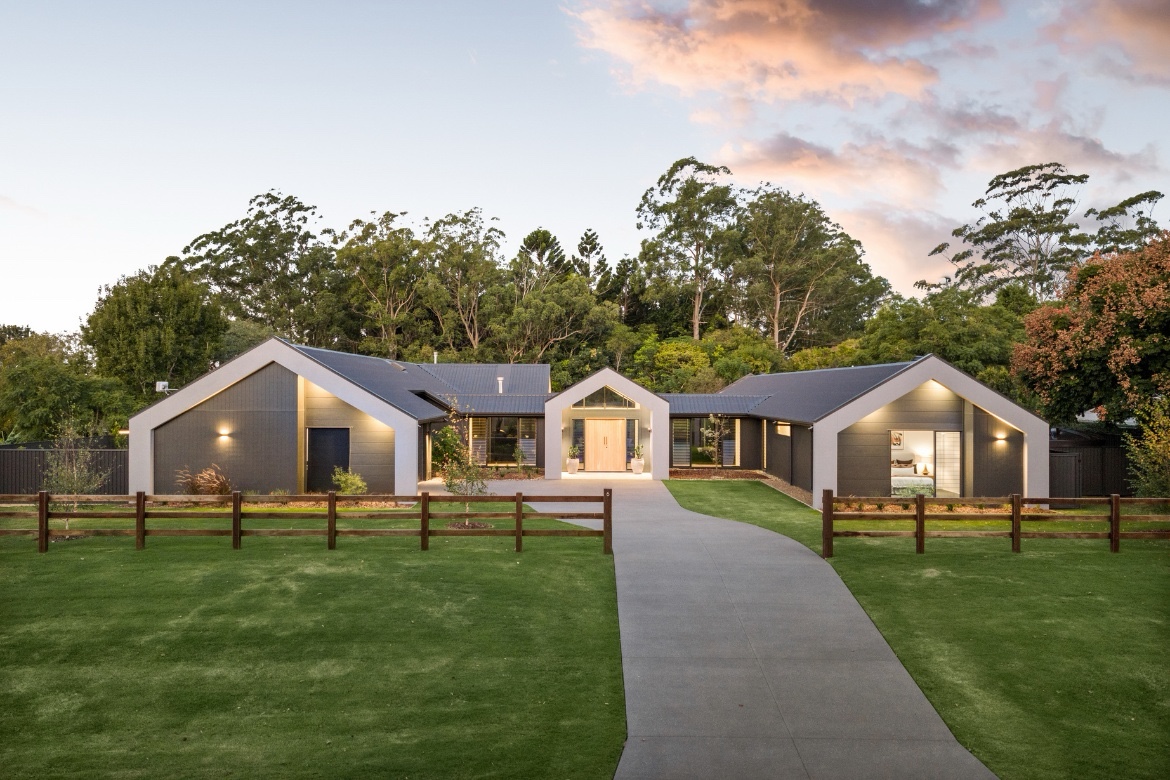

Architectural inspiration showing linked gabled pavilion forms
Architectural inspiration reference — pavilion rhythm, strong central arrival and connected wings. Inspiration only; not to be copied.

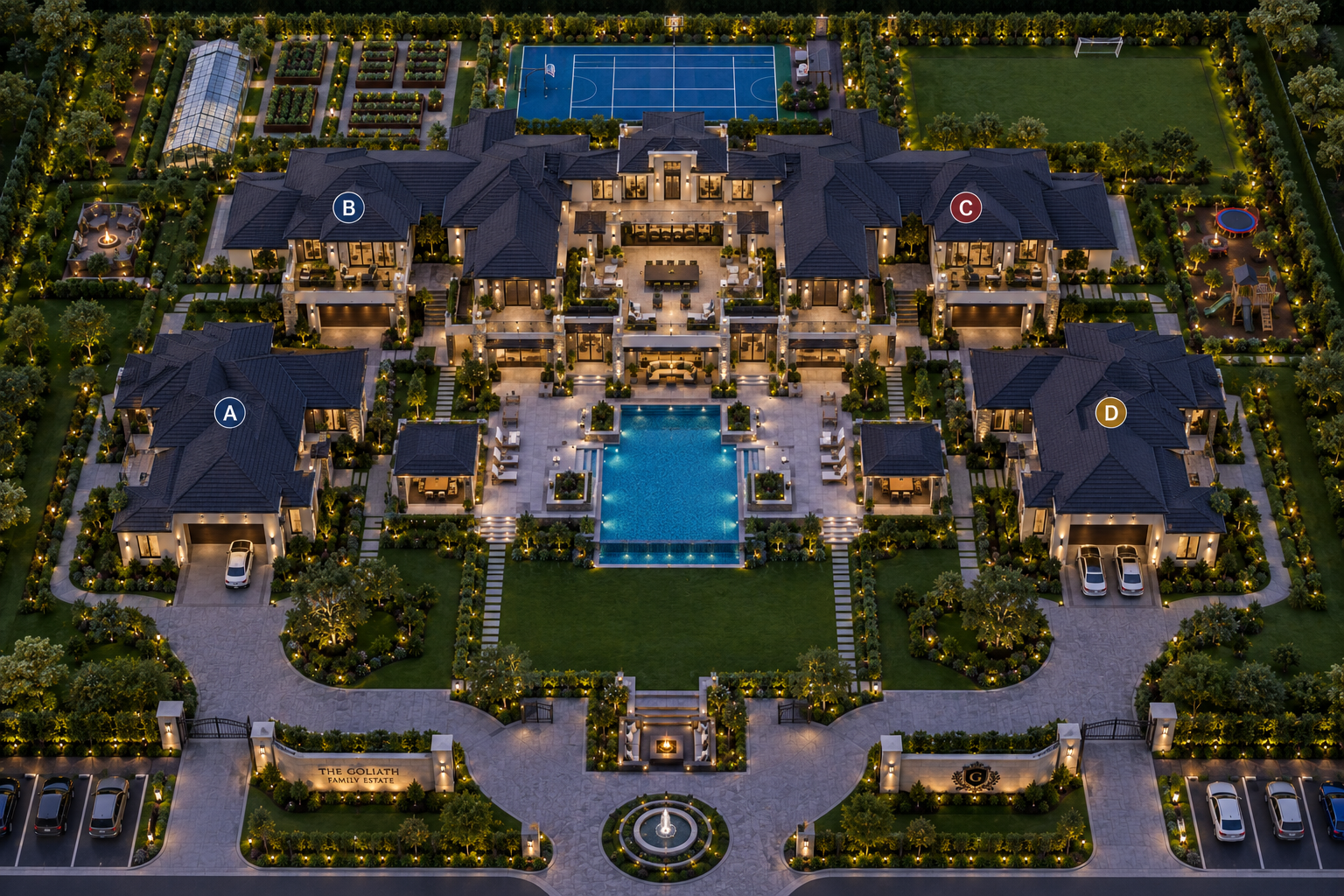

Conceptual site structure

Family Village Pavilion Arrangement

Private Estate GroundsOrchard · productive gardens · walking trails · quiet garden · recreation
Residence BFamily of 5 · 2-car garage
Residence DFamily of 6 · 2-car garage
Central Family Courtyard & Resort PrecinctPool · spa · alfresco pavilion · outdoor kitchen · terraces · Goliath Green
Grand Central Family PavilionGreat Room · dining 20–24+ · entertaining kitchen · library · prayer/reflection · theatre · guest facilities
Residence AVictor & spouse · accessible · 1-car garage
Residence CFamily of 4 · 2-car garage
Grand Arrival ForecourtPorte-cochère · feature landscaping · discreet resident garage branches
Estate DriveSecure gatehouse → landscaped approach → architectural reveal

Relationship diagram only. Final geometry must respond to the selected site's dimensions, north orientation, contours, views, access, planning overlays, vegetation and bushfire constraints.

Five principal components

Estate Architecture

Grand Central Pavilion

The tallest and most ceremonial pavilion. A dramatic glazed gable and direct visual axis lead from arrival to the family courtyard.

Residence A

Victor and spouse. Fully independent, luxurious and ageing-in-place capable, positioned closest to shared facilities and sheltered vehicle access.

Residence B

Independent family home for five with its own kitchen, living, bedrooms, terrace, private garden and two-car garage.

Residence C

Independent family home for four with its own entrance identity, domestic facilities, outdoor living and two-car garage.

Residence D

Largest children's household residence for six, with flexible bedrooms, study/activity spaces, family living and two-car garage.

Planning constitution

Non-Negotiable Masterplan Rules

  1. Every household has its own front door, kitchen, living areas and private outdoor space.
  2. No household must pass through the Grand Central Pavilion to reach its home.
  3. Garages are side-loaded, recessed or screened so seven resident car spaces never dominate the principal elevation.
  4. Architecture creates togetherness without forced interaction through landscaped separation and acoustic privacy.
  5. Shared family life centres on the Great House, resort courtyard and Goliath Green.
  6. Future expansion zones and service corridors preserve 100-year family adaptability.
Landscape hierarchy

Estate Outdoor Worlds

Infrastructure

Future-Ready Estate Backbone

GFE-021 · Controlled architectural brief

Accommodation & Spatial Schedule

This schedule converts the approved Family Village masterplan into a controlled room-by-room brief before concept floor plans are drawn. Areas are indicative net internal planning allowances, not construction measurements.

Indicative internal area~2,010 m²
Covered garages / links / alfresco~695 m²
Indicative covered built form~2,705 m²
Resident car spaces7
Shared heart

Grand Central Family Pavilion · ~650 m² internal

Household A

Residence A · Victor & Spouse · ~280 m² internal

Household B · family of 5

Residence B · ~360 m² internal

Household C · family of 4

Residence C · ~320 m² internal

Household D · family of 6

Residence D · ~400 m² internal

Shared covered & estate support

External / Support Schedule · ~437 m² covered

Adjacency & planning controls

Rules for GFE-022 Concept Floor Plans

  1. Every residence remains fully independent with its own entrance, kitchen, living, laundry, storage, private garden and garage access.
  2. Residence A receives the shortest sheltered route to the Grand Central Pavilion and arrival/vehicle areas.
  3. Shared noisy uses — theatre, games, pool plant, sports and service areas — are buffered from bedrooms and quiet gardens.
  4. Primary living areas maximise northern solar access where the eventual site permits; final orientation follows the site survey, not this conceptual diagram.
  5. Private bedroom windows avoid direct overlooking between households; landscape and building offsets reinforce acoustic and visual privacy.
  6. All residences use universal-design principles; Residence A is fully ageing-in-place capable from inception.
  7. Service circulation, deliveries, waste, plant access and visitor parking are separated from the ceremonial arrival sequence wherever practical.
  8. Indicative areas may move ±10–15% during concept design while the functional brief and household independence remain protected.
GFE-022 · Whole-estate concept planning

Concept Floor Plans

These concept plans translate the approved Family Village masterplan and GFE-021 spatial schedule into a coherent architectural arrangement. They define planning relationships, privacy, circulation and room zoning; they are not construction drawings and must later be resolved against the actual site survey, orientation, planning controls and consultant input.

One Family. Four Homes. One Estate.Predominantly single-storey17 residents7 resident car spaces
Overall estate arrangement

Family Village Concept Plan

Residence BFamily of 5Private garden · 2-car garage
Orchard & Quiet GardensWalking trail · productive garden
Residence DFamily of 6Private garden · 2-car garage
Central Family CourtyardPool · spa · alfresco · lawn · Goliath Green
Residence AVictor & spouseAgeing-in-place · 1-car garage
Grand Central Family PavilionGreat Room · Dining · Kitchen · Library · Prayer · Theatre · Guests
Residence CFamily of 4Private garden · 2-car garage
Grand Arrival ForecourtPorte-cochère · visitor set-down · landscaped axis
Shared family heart

Grand Central Pavilion

Grand Entry Gallery
Library / Council
Prayer / Reflection
Great Family Room
Family Dining 20–24+
Entertaining Kitchen + Scullery
Theatre / Media
Guest Suite(s)
Amenities / Storage
Grand Alfresco → Pool → Central Courtyard

Planning logic: ceremonial arrival to the south/front, family gathering spaces opening directly to the central courtyard, quieter rooms buffered from high-activity areas, and service access kept discreet.

Residence A

Victor & Spouse — Ageing-in-Place Plan

Oversized 1-Car Garage
Mudroom / Laundry
Private Entry
Living + Dining
Kitchen + Pantry
Study
Guest Bedroom
Accessible Guest Bath
Master Suite + WIR + Accessible Ensuite
Private Covered Terrace + Garden

Critical controls: zero-step access, generous circulation, shortest sheltered route to the Grand Central Pavilion, future mobility support provision and complete household independence.

Residence B

Family of 5

2-Car Garage
Mud/Laundry
Kitchen · Dining · Family
Parents Suite
Bedroom 2
Bedroom 3
Bedroom 4
Family Bath
Study / Retreat
Private Alfresco + Garden
Residence C

Family of 4

2-Car Garage
Mud/Laundry
Kitchen · Dining · Family
Parents Suite
Bedroom 2
Bedroom 3
Family Bath
Study / Flex Room
Private Alfresco + Garden
Residence D

Family of 6

2-Car Garage
Mud/Laundry
Kitchen · Dining · Family
Parents Suite
Bedrooms 2–5
2 Family Baths
Homework / Teen Retreat
High-Capacity Storage
Private Alfresco + Garden
Architectural coordination rules

Floor-Plan Design Controls Locked for Detailed Design

  1. Every household has an independent front door, kitchen, living room, laundry, outdoor area and secure garage access.
  2. No household must pass through another household or the Grand Central Pavilion to reach its residence.
  3. Bedrooms are protected from the pool, sports and high-noise communal zones by distance, orientation or acoustic buffers.
  4. Private windows and terraces are staggered to prevent direct overlooking between residences.
  5. All principal family routes can be weather-protected; service and delivery circulation remains secondary.
  1. Residence A is fully single-level and universally accessible, with provision for future care support without institutional character.
  2. Living spaces should be rotated to maximise north light once the actual site orientation is known.
  3. Wet areas and service cores should be rationalised for cost, maintenance and infrastructure efficiency.
  4. Garages remain visually subordinate to architecture and landscape; no seven-door garage wall is permitted.
  5. Future pavilion expansion must remain possible without breaking the estate’s primary circulation or architectural composition.
GFE-023 · Outdoor estate architecture

Landscape, Recreation & Resort Masterplan

GFE-023 coordinates the entire outdoor estate as one connected family environment. It links the GFE-022 concept floor plans to the central resort precinct, private household gardens, active recreation, productive landscapes, arrival sequence and long-term estate ecology.

Resort-quality family heartFour private garden domainsIntergenerational recreationQuiet + active zones separatedWater-wise landscape systems
Estate landscape structure

Seven Landscape Precincts

1. Grand Arrival Landscape

Secure gates, tree-lined approach, controlled architectural reveal, feature planting, visitor set-down and porte-cochère landscape.

2. Central Resort Courtyard

Family pool, integrated spa, sun terraces, shaded lounging, Grand Alfresco Pavilion and direct connection to the Great Room and family dining.

3. The Goliath Green

A generous flexible family lawn for cricket, football, celebrations, marquees, photography and large intergenerational gatherings.

4. Private Household Gardens

Four distinct private outdoor domains with alfresco terraces, screening, quiet lawns and planting that protect household independence.

5. Active Recreation Zone

Multipurpose sports court, children’s play, open recreation and flexible youth activity positioned away from bedroom and reflection zones.

6. Productive Estate

Orchard, vegetable garden, herbs, greenhouse potential, composting and service access arranged as an attractive working landscape.

7. Quiet Estate & Walking Circuit

Reflection garden, shaded seating, walking loop, mature-tree zones and low-noise landscape retreats for all generations.

Central family heart

Resort Courtyard + Grand Alfresco Pavilion

Private Garden BScreened family terrace
Goliath GreenFlexible lawn · celebrations · family sport
Private Garden DChildren + family terrace
Shaded RetreatQuiet seating · trees
Pool + Spa Resort PrecinctFamily swimming · shallow zone · terraces · shade
Play + Youth ZoneVisible but acoustically buffered
Private Garden AAccessible terrace · short routes
Grand Alfresco PavilionOutdoor kitchen · BBQ · dining 20+ · lounge · fireplace
Private Garden CIndependent family outdoor room

Critical relationship: Great Room → Family Dining → Grand Alfresco → Pool / Spa → Goliath Green should read as one continuous family entertainment sequence, while private residence gardens remain visually and socially protected.

Recreation hierarchy

Family Recreation Programme

  1. Pool & spa: family-scale pool with shallow children’s zone, deeper recreation area, safe step/ledge access, shaded supervision and integrated spa.
  2. Grand Alfresco: weather-protected outdoor kitchen, BBQ, dining for 20+, lounge and fireplace/fire feature.
  3. Goliath Green: large central lawn for informal sport and major family events.
  4. Sports court: multipurpose court located away from sleeping areas and screened by landscape.
  5. Children & youth: age-flexible play spaces with passive supervision and future conversion potential.
Landscape privacy

Four Household Garden Domains

  1. Each residence has a private alfresco terrace that is not part of the communal circulation route.
  2. Planting, walls, level changes and pavilion orientation prevent direct terrace-to-terrace overlooking.
  3. Residence A receives step-free garden access, shaded seating and the shortest route to shared facilities.
  4. Children’s bedrooms and private gardens are buffered from late-night communal entertaining.
  5. Shared paths connect households without crossing private terraces or bedroom outlooks.
Productive + ecological estate

Orchard, Gardens & Water Strategy

Night-time estate

Lighting, Safety & Accessibility

Controls locked for detailed design

GFE-023 Landscape Masterplan Rules

  1. The central resort precinct is communal; every residence also retains a genuinely private garden domain.
  2. Active recreation, plant and service noise must be buffered from bedrooms, prayer/reflection spaces and quiet gardens.
  3. Landscape design must reinforce the architectural pavilion composition rather than hide or fragment it.
  4. Primary paths must remain accessible, weather-conscious and intuitive for children, older family members and guests.
  5. Large mature-canopy trees should be planned strategically without compromising solar access, bushfire controls or infrastructure.
  1. Pool design must incorporate compliant safety barriers while preserving visual connection and adult supervision.
  2. Irrigation, drainage and rainwater systems must be designed as integrated estate infrastructure, not isolated garden add-ons.
  3. Outdoor lighting should be warm, restrained and zoned to protect privacy and reduce unnecessary spill.
  4. Future pavilion additions must not consume the principal recreation spine, Goliath Green or key landscape buffers.
  5. Final species, levels, drainage, pool engineering and bushfire requirements remain subject to the actual site and qualified consultants.
Commercial control

Cost & Delivery Summary

Cost ItemBudgetCommittedPaidForecastVarianceStatus
Construction programme

Programme Summary

Information control

Drawing Summary

Total drawings0
Approved0
Pending0
Superseded0
Construction information policy

Document-Control Rules

  1. Only current approved drawings may be used for construction.
  2. Every issued document must carry a reference, revision and status.
  3. Superseded documents must remain archived but clearly controlled.
  4. Approvals and transmittals must preserve an auditable history.
  5. Certified professionals remain responsible for final construction documents.
Estate operations

Operations Dashboard

Registered assets0
Maintenance due0
Open work orders0
Active warranties0
Pending inspections0
Open incidents0
Maintenance discipline

Operating Registers

Lifecycle management

Operations Principles

  1. Critical systems receive scheduled preventive maintenance.
  2. Safety, fire, electrical, pool and security inspections are never optional.
  3. Warranty periods and service-provider credentials remain current.
  4. Incidents and corrective actions are recorded and closed properly.
  5. Asset replacement planning must protect long-term family finances.
Four-household governance

Family Governance Summary

Households4
Members17
Representatives4
Approved decisions0
Family constitution

Governance Principles

  1. Private household autonomy must be respected.
  2. Shared estate matters must be transparent and fair.
  3. Major communal decisions require proper family consultation.
  4. Shared costs must follow an agreed allocation method.
  5. Conflict should be resolved privately, respectfully and progressively.
  6. The estate must preserve family unity across generations.
Smart estate

Technology Systems

Network Zones

Separate private networks for Residences A, B, C and D.

Security

Access control, gates, intercom, cameras and emergency alerts.

Automation

Lighting, climate, blinds, irrigation and system monitoring.

Manual Overrides

Essential functions remain operable during technology failure.

Sustainable estate

Energy & Water Systems

Solar & Battery

Renewable generation, storage and essential-load resilience.

EV Readiness

All seven resident car spaces ready for EV charging.

Water

Rainwater harvesting, leak protection and efficient fixtures.

Landscape

Native planting, smart irrigation and drought resilience.

Integrated risk control

Estate Risk & Action Register

Risk IDAreaRiskLikelihoodImpactScoreOwnerActionStatus
Executive estate report

Integrated GFEOS Summary



Final handover

Production Checklist

Production Readiness100%
Complete GFE programme

GFE Build Register

BuildDeliverableStatusVersion
GFE-001Cloudflare Project Portal FoundationComplete1.0.0
GFE-002Estate Masterplan & Accommodation ScheduleComplete1.0.0
GFE-003Interactive Site MasterplanComplete1.0.0
GFE-004Ground Floor Architectural PlanningComplete1.0.0
GFE-005First Floor Architectural PlanningComplete1.0.0
GFE-006Roof & Building EnvelopeComplete1.0.0
GFE-007Coordinated ElevationsComplete1.0.0
GFE-008Building Sections & Vertical CoordinationComplete1.0.0
GFE-009Landscape & Outdoor Estate PlanningComplete1.0.0
GFE-010Interior Architecture & Communal SpacesComplete1.0.0
GFE-011Private Residence Interior PlanningComplete1.0.0
GFE-012Smart Estate, Security & TechnologyComplete1.0.0
GFE-013Sustainability, Energy & Water SystemsComplete1.0.0
GFE-014Cost Planning, Budget & PhasingComplete1.0.0
GFE-015Construction Documentation & Drawing RegisterComplete1.0.0
GFE-016Estate Operations & Maintenance SystemComplete1.0.0
GFE-017Family Governance & Estate ManagementComplete1.0.0
GFE-018Final Integrated GFEOS PlatformComplete1.0.0
GFE-019Family Village Architectural Masterplan DirectionComplete1.1.0
GFE-020Site & Pavilion Masterplan IntegrationComplete1.1.0
GFE-021Accommodation & Spatial ScheduleComplete1.2.0
GFE-022Concept Floor PlansComplete1.3.0
GFE-023Landscape, Recreation & Resort MasterplanComplete1.4.0
